FEATURES:

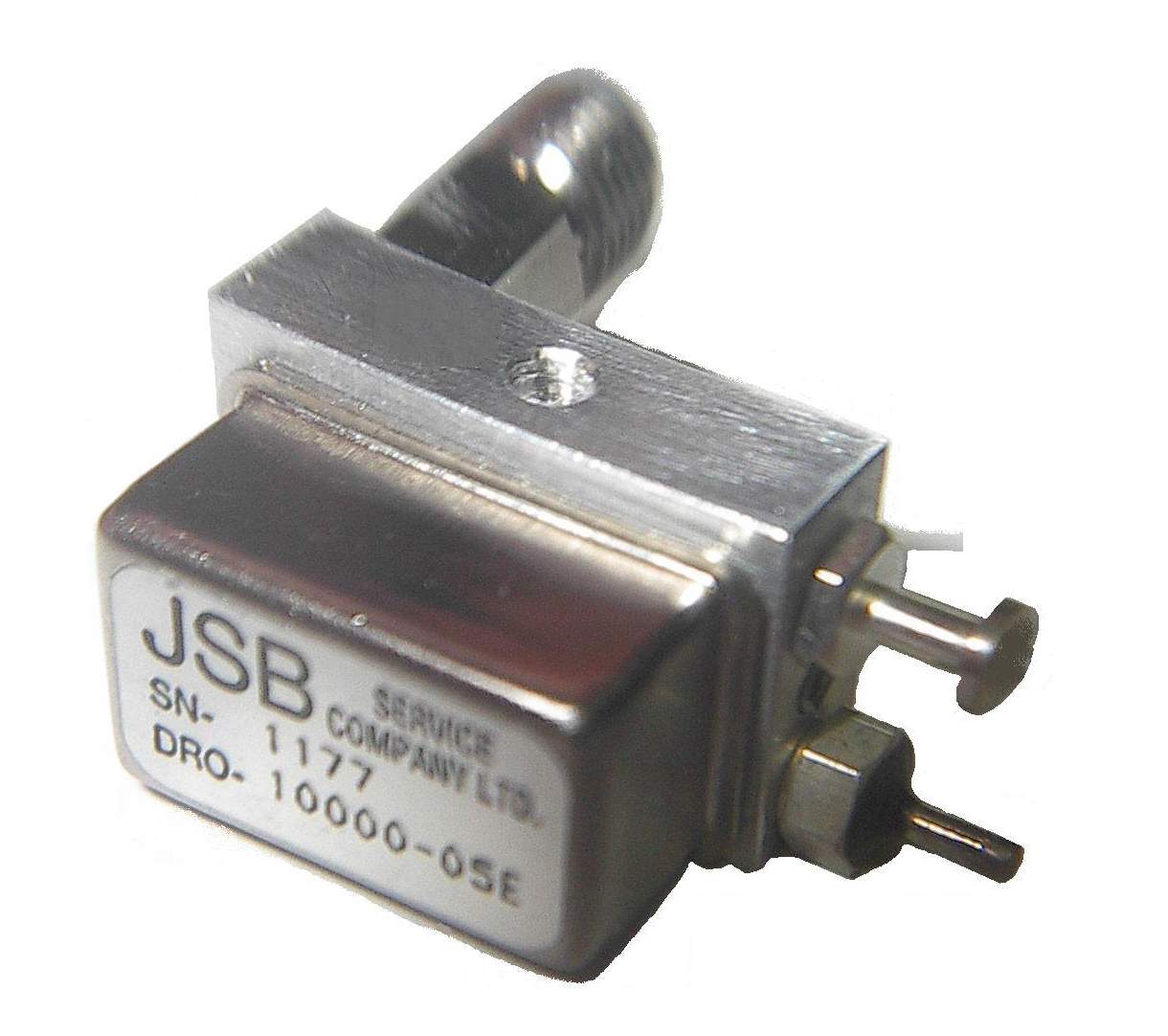

Our standard DRO using the JSB FET transistor circuit packaged in a 14 pin DIP Integrated Circuit package is mounted via the two, 2-56, mounting screws to a bracket that also mounts a SMA female connector. The DC input is routed to the DRO via a feed-through capacitor that mounts a solder terminal. The resulting assembly  measuring only 0.85" x 0.55" x 0.60" takes up less than one third cubic inch of space (Plus connectors and terminals).

 Frequency, stability, output power and other specifications are as listed on our DRO specification sheets.

Available with SMA male or female connector.
